Chemical industrial centrifugal pump

FOB Price:

USD 1890-6000 / Unit

Min.Order Quantity:

1 Unit

Supply Ability:

600 Unit per Month

Port:

Shanghai

Place of Origin:

MADE IN CHINA

Payment Terms:

T/T

Brand:

kenshine-pump

Products Model:

40FSB-20L

Products Details
Company Profile

Quick Details

Brand Name: kenshine-pump

Model Number: 40FSB-20L

Place of Origin: MADE IN CHINA

Packaging & Delivery

Packaging Details: crate/plywood case
Delivery Detail: 7days

Specifications

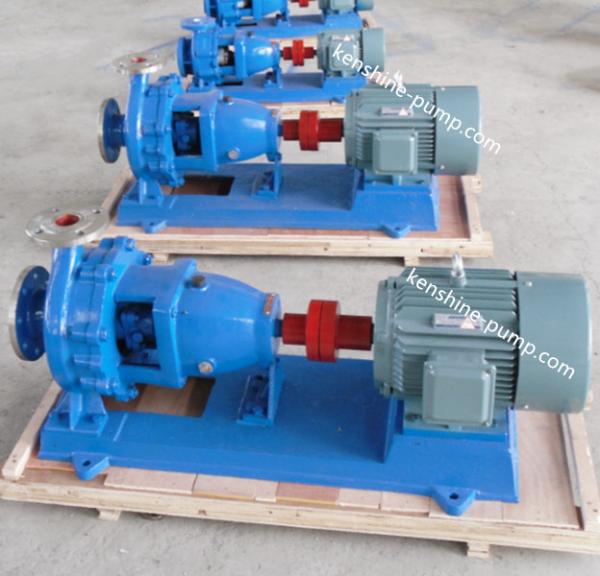

Horizontal fluoroplastic acid transfer pump

FSB fluoroplastic centrifugal pump is a centrifugal pump designed by our company based on the technology of fluoroplastic pump valve. The flow components are all made of fluoroplastic alloy, and the pump body is all plastic(F46), cantilever type structure, unable to withstand the gravity of the pipeline. Compared with IHF series fluoroplastic liner pump, it is light weight and labor-saving for maintenance. FSB fluorine alloy centrifugal pump adopts outside mounted PTFE bellows mechanical seal, with multiple protection, prolong the service life of the machine to seal. For conveying medium with impurity particles, without cooling water single face hard in hard (to silicon carbide, silicon carbide) mechanical seal can be adopted, so users need to consider the model selection of the solid content in the medium.

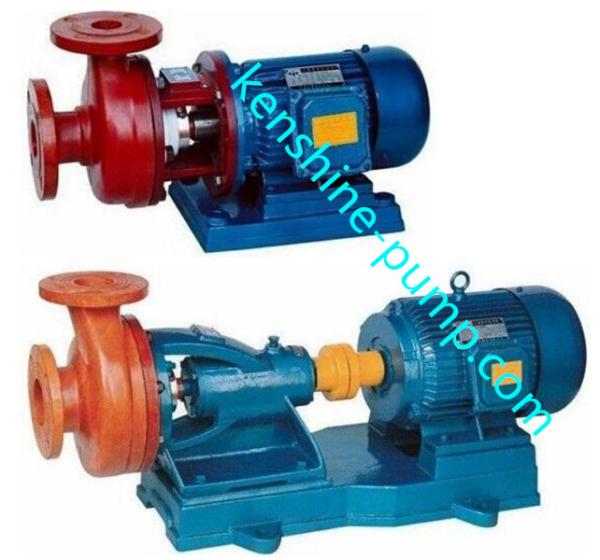

FSB-L and FSB-D type centrifugal pump is with compact structure and Simple to operate and low cost. FSB-L pump and motor is connected through flexible shaft coupling. FSB-D pump and motor is close coupling. The pump housing, impeller, machine seal and so on for the two types can be used interchangeably.

FSB fluoroplastic centrifugal pump is Suitable for transporting liquid in petroleum, chemical, pharmaceutical, pesticide, pickling, dyestuff, paint, smelting, papermaking, electroplating, food and other industries. The pump has strong corrosion resistance, high mechanical strength, no aging, no toxin ,no decomposition and it can transport any concentration of acid, alkali, oxidant and other corrosive media.

model	FLOW(m3/h)	Head(m)	inlet( mm)	outlet( mm)	power( kw)	speed( r/min)	NPSH(m)	efficiency( %)
25FSB-10L	1.5	10	25	20	1.5	2900	4.5	29
25FSB-18L	3.6	18	25	20	1.5	2900	4.5	27
40FSB-15L	5	15	40	32	1.5	2900	4.5	51
40FSB-20L	10	20	40	32	3	2900	4	47
40FSB-30L	10	30	40	32	3	2900	4	55
40FSB-40L	10	40	40	32	5.5	2900	4.5	35
40FSB-50L	10	50	40	32	7.5	2900	4.5	33
50FSB-20L	20	20	50	40	3	2900	3	55
50FSB-25L	15	25	50	40	4	2900	4	64.5
50FSB-30L	15	30	50	40	4	2900	4	70
50FSB-40L	15	40	50	40	5.5	2900	4.5	39
50FSB-50L	15	50	50	40	7.5	2900	4.5	38
65FSB-32L	29	32	65	50	5.5	2900	3.5	45
65FSB-40L	29	40	65	50	11	2900	4	53
80FSB-20L	50	20	80	65	5.5	2900	4	72
80FSB-30L	50	30	80	65	7.5	2900	4	64
80FSB-34L	50	34	80	50	11	2900	4	65
80FSB-40L	50	40	80	50	11	2900	4.5	67
80FSB-50L	50	50	80	50	15	2900	4.5	65
100FSB-15L	80	15	100	65	11	2900	4.5	72
100FSB-30L	100	30	100	80	15	2900	4	74
100FSB-40L	100	40	100	80	22	2900	4	74
100FSB-50L	100	50	100	80	30	2900	4.5	72
125FSB-12L	90	12	125	80	7.5	1450	4.5	73
125FSB-40L	150	40	125	80	37	2900	4	78
